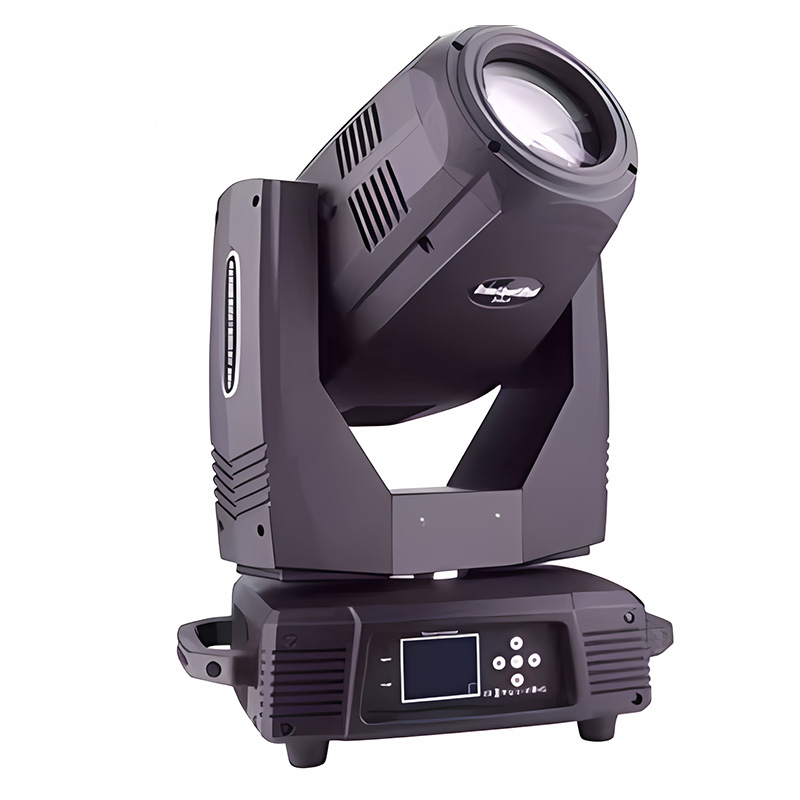

20R 380W 3IN1 Moving Head Light (China Lamp)#(Osram Lamp)

Rated voltage: AC100V~240V±10%, 50-60Hz,
Rated power: 680W
Light source: 371W
Color temperature: 8500K
Lamp life: 2000 hours
DMX channel: 17/24 international standard DMX channels
Beam angle: parallel beam angle 1°~3°, pattern magnification angle 2.8-58°, white light spot 4.5 meters in diameter within 5 meters, prism light spot 2.3 meters in diameter, prism superposition light spot 3.5 meters in diameter;
Linear dimming: mechanical linear dimming 0~100%
High-speed strobe: pulse strobe, synchronous asynchronous strobe. Strobe speed 1-26 times per second Fixed color:
Bulb high temperature protection: adopt wind direction diversion and temperature intelligent monitoring technology to monitor the lamps in real time. When the temperature is too high, the lamp will be automatically turned off to ensure the safe use of the lamps.
Intelligent fan speed control design: Built-in intelligent fan automatic speed control function design. When the lamp is in the extinguishing state, the whole machine fan operates at a low speed, which can effectively reduce the fan noise output according to the actual needs of the performance site and create a good performance atmosphere.
Signal protection: The input signal has its own isolation protection function to ensure stable signal transmission without interference.
Display screen: LCD display, touch screen + button control, the operation process is more humane and convenient. Built-in Chinese and English display interface switching, intelligent 180-degree flip inverted.
Operation page: built-in multi-page, sub-item design function. The function mode can be customized according to the needs of the use scenario. Comes with password lock protection.
Sleep function: The most advanced technology is used to realize the remote sleep function. When the lamp is disconnected from the signal, it automatically enters the sleep state, making the lamp more stable and safer, and the sleep time can be set by yourself.
CPU control: Using the latest imported chip drive, high stability, better temperature resistance, and very fast running speed. It only takes 2 seconds for XY to complete a circle;
Control mode: DMX, self-propelled, master-slave, voice control
Color wheel: 1 color wheel, 13 colors + white light, half-color, bidirectional flow, color conversion and half-color rainbow effect.
Fixed pattern wheel: 1 fixed pattern wheel, 14 patterns + white light, each pattern has a shaking effect, and the pattern wheel has a forward and reverse fast and slow water flow effect
Rotating pattern wheel: 1 rotating pattern wheel, 9 optional pattern pieces + white light, each pattern can rotate forward and backward and have a shaking effect, and the pattern wheel has a forward and reverse fast and slow water flow effect.
Prism: 2 independent rotating prisms, the standard configuration is an 8-prism + linear hexagonal prism and can be superimposed, and all prisms can achieve linear infinite zooming function
Prism focus: The prism can be linearly focused to zoom in and out, and the clarity is adjustable.
Focusing: Using high-precision glass optical lens, electronic focusing design, ultra-fine and smooth adjustment of focal length.
Atomization: 0%~100% uniform soft light atomization effect
Horizontal scanning: X-axis: 540°, 16Bit, vertical scanning: Y-axis: 232°, 16Bit,
Automatic error correction: Both horizontal and vertical use photoelectric reset system, and occasional errors can be automatically retrieved and reset
Appearance material: High temperature resistant and fireproof engineering plastic injection molding.
Working environment: IP20/indoor use
Working environment temperature: -20°C ~40
