The FP series is a high-performance switching power amplifier with a compact and reasonable structure; Each channel has an independently adjustable peak output voltage, making it very convenient for the amplifier to drive speakers of different power levels; Intelligent protection circuits provide advanced technology to protect internal circuits and connected loads, and can protect amplifiers and speakers under extreme conditions. Suitable for large-scale performances, venues, high-end business entertainment clubs, and other venues.

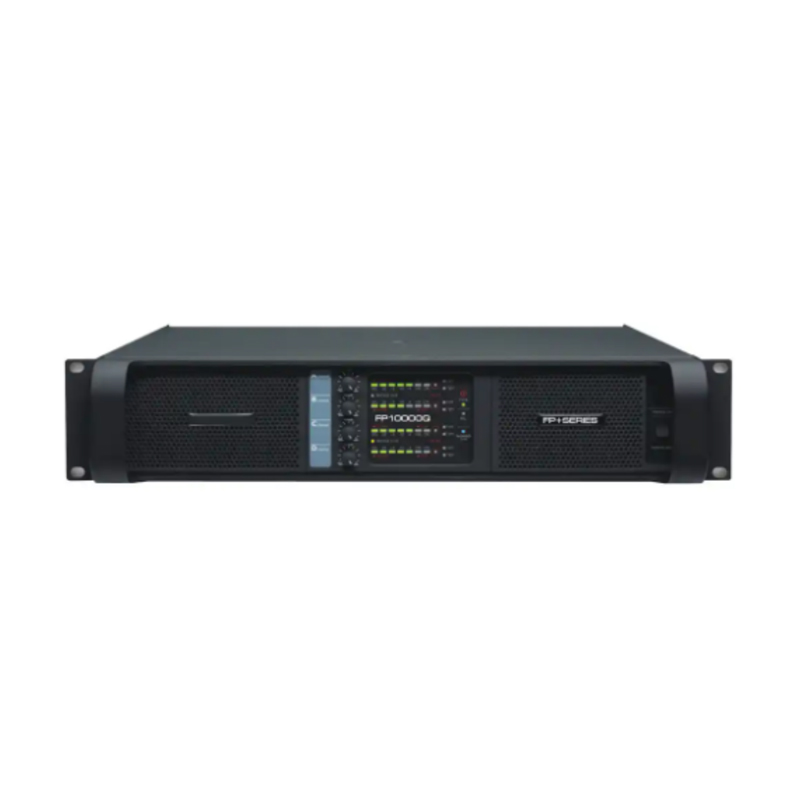

FP10000Q Technical Parameters
8 Ω stereo power: 4X1350W
4 Ω stereo power: 4X2100W
2 Ω stereo power: 4X2500W
8 Ω bridge power: 2X4200W
4 Ω bridge power: 2X5000W
Frequency response (+0/-0.3dB, 1W/8 Ω): 20Hz-34KHz
Total harmonic distortion 20 Hz-20 kHz 1W:< 0.1%
Signal to Noise Ratio:> 112dB
Channel separation (crosstalk) 1 kHz:> 70dB
Input connector: XLR female
Output connector: Speakon socket
Input impedance: 20K Ω balanced
Level adjustment: Front potentiometer, from negative infinity to 0dB
Cooling method: infinitely variable speed fan, airflow from front to back
Power amplifier protection methods: short circuit, open circuit, DC voltage, overheating, RF, ultra-low frequency protection
Power specification: AC 220V (± 10%) 50-60Hz
Chassis size (height * width * length): 88mm X483mm × 396mm
Packaging dimensions (height * width * length): 180mm x 560mm x 500mm
Net weight: 14kg
Gross weight: 15.5kg
